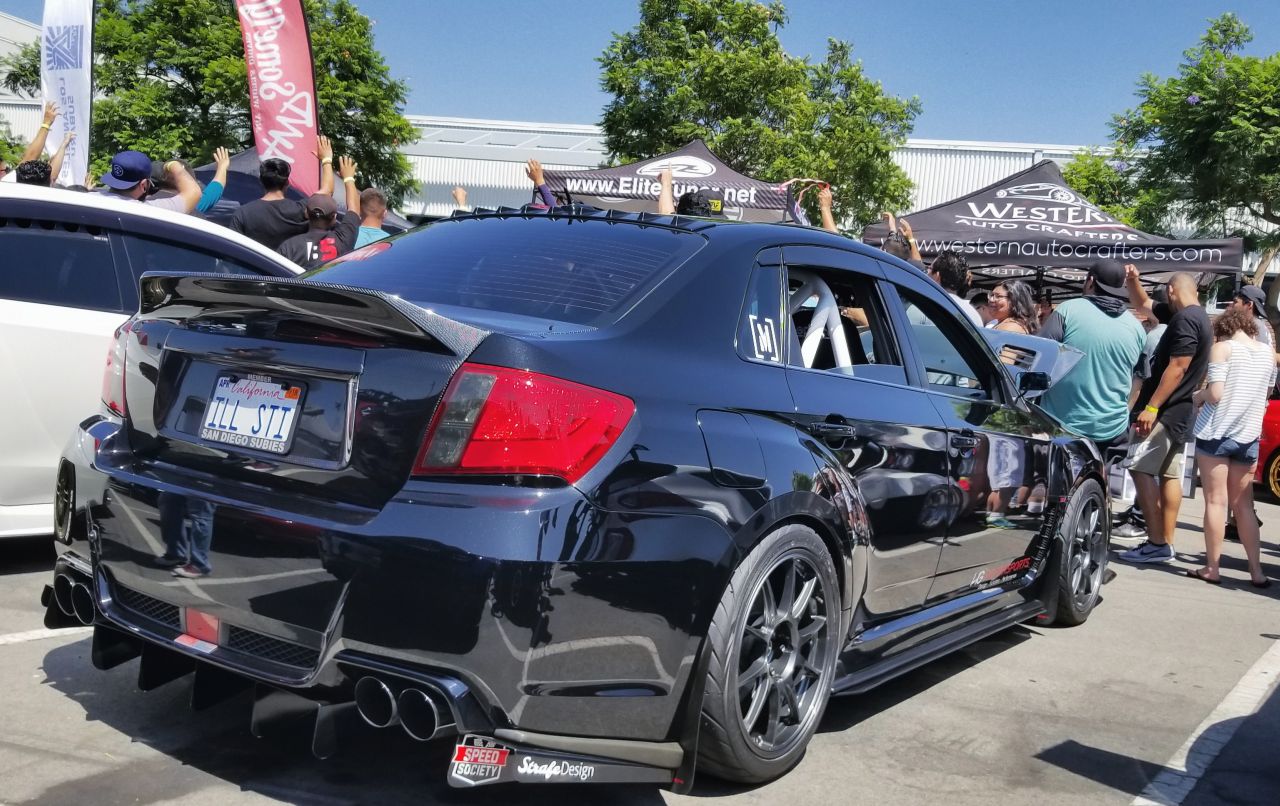

Carlos Dhayer's 2013 Impreza WRX STI Limited
Member #2538
Car Description:
Built and Tuned by: Metro Performance of So Cal560 awhp / 529 awtq at 30 psi on e85
Motor: Dan Benson Racing sleeved, 99.75 bore, blueprinted and balanced 9.5:1 compression block. (Custom JE Pistons, Pauter long rods, King bearings, Nitrided crank, Fluidampr crank pulley, ARP case bolts).
Heads: SoCal Porting ported and polished, multi angle valve job, +1mm Inconel valves, Supertech dual titanium valve springs and retainers, ARP 625+ head studs, BC820 cams.
Turbo setup: Full-Race.com rotated twin scroll kit, Borg Warner EFR9174-1.05a/r (ported, polished and coated by SoCal Porting, custom 4” intake, ported and polished TGV deletes and port matched intake manifold.
Exhaust: Full-Race.com downpipe, dual external 38mm TIAL wastegates with custom dump tubes, custom 3" Greddy/DynoMax catback exhaust.
Cooling: Mishimoto X-line radiator and fan shroud, Mishimoto Radiator hoses, custom Metro Performance intercooler with 2.5" (hot) to 2.75" (cold) intercooler piping.
Oil: Mishimoto 19-row oil cooler with custom oil lines, 12mm Orbit oil pump, Crawford Performance AOS.
Current Fuel Setup: Aftermarket Industries SP800 surge tank with dual Walboro 450lph fuel pumps, Deatschwerks DW65c in tank fuel pump, custom fuel lines, Fuelab fuel pressure regulator, Agency Power fuel rails, Injector Dynamics 1700cc injectors, Cobb flex fuel kit.
Drivetrain: ACT HD 6 puck (sprung) clutch, Kartboy short shifter and bushings, stainless steel clutch line.
Mounts: Group N motor mounts, Perrin transmission mount, Perrin Performance master cylinder brace, Torque Solutions pitch stop mount.
Suspension: KW suspension V3 coilovers, ISC rear control arms, Eibach Pro sway bars, Whiteline sway supports, Kartboy endlinks, The ENTIRE line of SuperPro bushings, SPT lower chassis brace, Cusco rear strut tower brace.
Brakes: DBA 5000 series rotors (front) and DBA 4000 series rotors (rear) with Hawk pads and stainless steel brake lines.
Wheels: Wedsport TC105N (18x9.5 +35)
Tires: Federal 595 RS-RR (265/35zr18)
In-car Entertainment: JDM - S206 double din bezel with Pumpkin 7.1 headunit
Interior:Custom AutoPower racing roll bar, Sparco EVO III seats, Schroth Racing Profi II ASM 5pt harnesses, Cobb Accessport V3, Prosport Gauges (Boost, AFR, Fuel Pressure, Oil pressure, Oil Temperature), Sparco P310 steering wheel, NRG short hub/quick release/lock, WarBird Machine SI drive cover, reverse lockout, and custom heavyweight knob.
Exterior: Seibon CW Style carbon fiber hood, Seibon carbon fiber duck bill trunk, HT Autos full lip kit, Strafe Design rear diffuser/side skirt extensions/front splitter, custom front bumper and oil cooler vents, Wraptor Wraps front emblem overlay, Rally Armor mud flaps, Hella horns.
